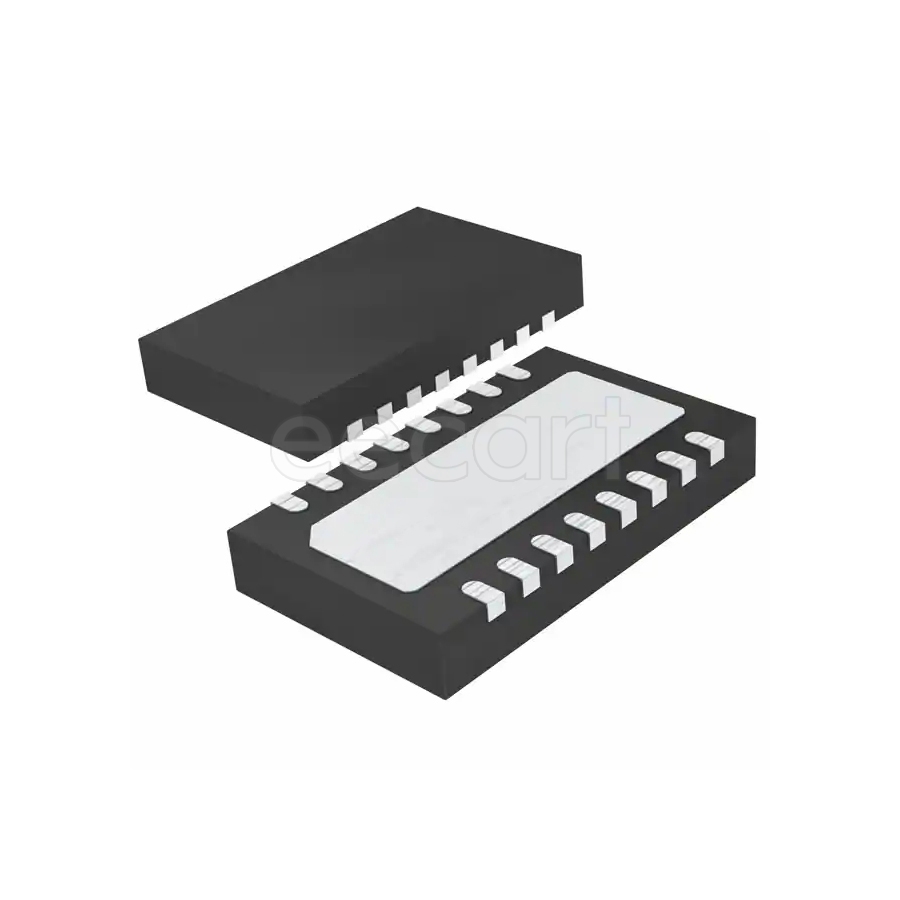

TPD8F003DQDR
Manufacturer:
Texas Instruments
Mfr.Part #:
TPD8F003DQDR
Datasheet:
Description:
EMI / RFI Filters WSON-16 SMD/SMT RC (Pi) 2nd 200 MHz 8.5 pF 25 dB 100 Ω
| Parameter | Value |
|---|---|
| Capacitance | 8.5 pF |
| Length | 3.3 mm |
| Width | 1.35 mm |
| Termination | Flat |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Resistance | 100 Ω |
| Height | 800 µm |
| Circuit Type | Filter |
| Packaging | Reel |
| Depth | 1.45 mm |
| Thickness | 0.75 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Frequency | 200 MHz |
| Number of Elements | 16 |
| Operating Supply Voltage | 5.5 V |
| Lifecycle Status | Production (Last Updated: 5 days ago) |
| Ambient Temperature Range High | 85 °C |
| Number of Channels | 8 |
| Min Breakdown Voltage | 6 V |
| ESD Protection | Yes |
| Max Junction Temperature (Tj) | 150 °C |
| Attenuation Value | 25 dB |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 days ago) |
| Filter Order | 2nd |
| Number of Lines | 8 |
| Chemistry/Technology | RC (Pi) |
| Channel Resistance | 100 Ω |
| Cutoff Frequency | 200 MHz |
Stock: 5374
Distributors
pcbx
pcbxUnit Price$0.61299
Ext.Price$0.61299
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.61299 | $0.61299 |
| 10 | $0.51040 | $5.10400 |
| 25 | $0.44286 | $11.07150 |
| 50 | $0.42542 | $21.27100 |
| 100 | $0.40866 | $40.86600 |
| 300 | $0.38169 | $114.50700 |
| 500 | $0.35650 | $178.25000 |
| 1000 | $0.32658 | $326.58000 |
| 3000 | $0.31461 | $943.83000 |
| 5000 | $0.29580 | $1479.00000 |
